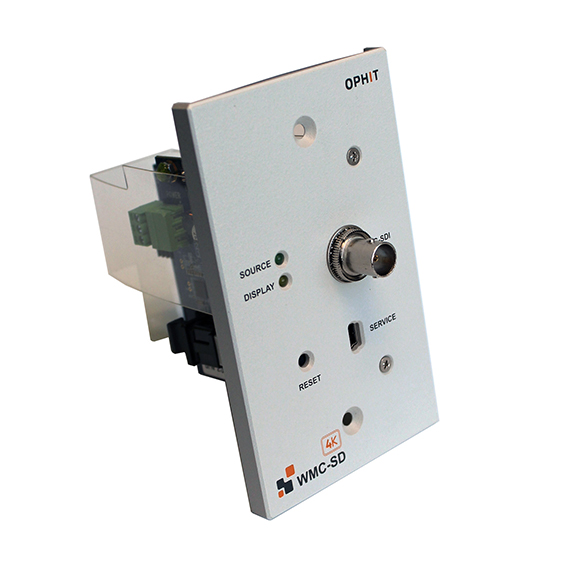

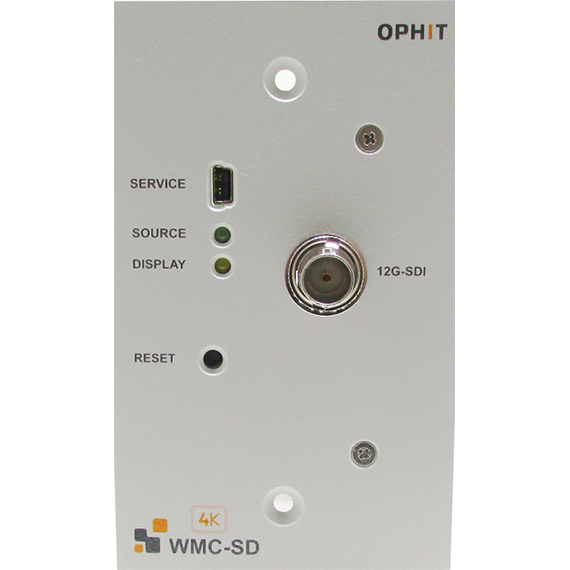

Ophit’s WMC-SD is an MPO/MTP-type wall plate video signal converter that converts 12G-SDI to HDMI 2.0 TMDS-compatible optical signals, delivering maximum resolution up to 4K (4096 x 2160) @60Hz without signal degradation.

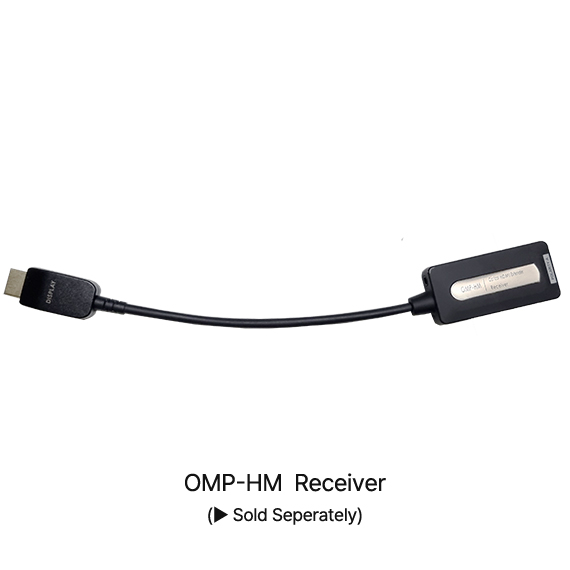

The newly launched wall plate video signal converter connects to the OMP-HM-R (Receiver) via MPO-type optical cable for up to 100m (330ft) of uncompressed data transmission.
Specifically designed to be mounted in a single gang enclosure, the WMC-SD offers high-speed video signal transmission solutions for Medical system or Broadcast, Control system etc.
Feature
• Supports the HDMI 2.0 standard
• Supports SDI interface standards from HD-SDI to 12G-SDI
• Equipped with two LEDs to indicate the status of input and output
• Equipped with one push button switch to reset the system
• Transmits converted optical signal using one MPO type optical cable
• Designed to mount in a single gang sized slot
•
Fiber
Cable
MPO/MTP, 8 (or 12)-core, OM3,
multi-mode fiber : Polarity A type
•
Input Date Rate
Up to 11.88 Gbps (ST020820-1,
12G-SDI)
•
Output Date Rate
Up to 18 Gbps (HDMI 2.0)
•
Optical Converter
1 x 4 Array 850nm VCSEL, 1 x
VCSEL, 1 x PD
•
Input Signal / Connector
1 x SDI via
BNC Female Connector
•
Output Signal / Connector
1 x MPO-Type (Optical Female
Connector)
•
USB
Connector
1 x Mini USB-B (Female Connector)
•
Video Resolution
Up to 4K@60Hz
•
Weight
155g (0.34 lbs)
•
Dimensions (mm)
70 x 115 x
87mm (W x D x H)
•
Power Supply
DC +5V to +12V
•
Power Connector
1 x 3.5mm (0.14”) Pitch
3-Position Terminal
(JIEKT / JK350R-03P)
