Video Over IP

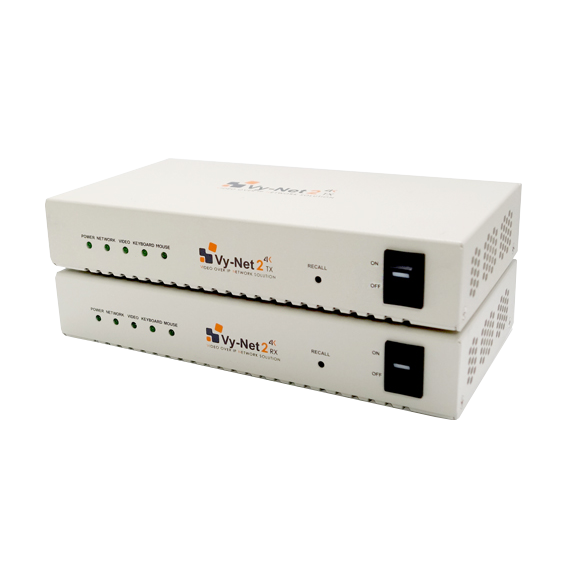

VyNET2
Product description
4K Video Over IP
Vy-Net2 is a 4K UHD video over IP network solution that connects video sources to end-point destinations.
Vy-Net2 provides a complete and highly flexible networked system solution
and Supports resolutions up to 4K2K@60Hz 8-bit 4:4:4.
It is Supports HDCP 1.4 to HDCP 2.2 conversion and Supports HDCP 2.2 to HDCP 1.4 conversion

Features

▪ Network interface
- 10G Base T copper
- In order to achieve the best performance
- it is recommended to use CAT7 cable.
▪ Analog stereo audio input / output
▪ KVM2
- Keyboard: Supports only basic USB2.0 wired keyboard.
- Mouse: Supports only basic 3-button USB2.0 wired mouse.
▪ External Interface : LED indicators / Recall Button / RS232

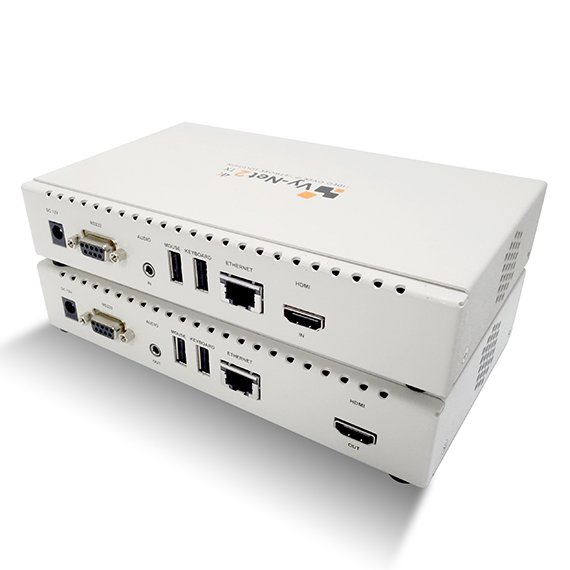

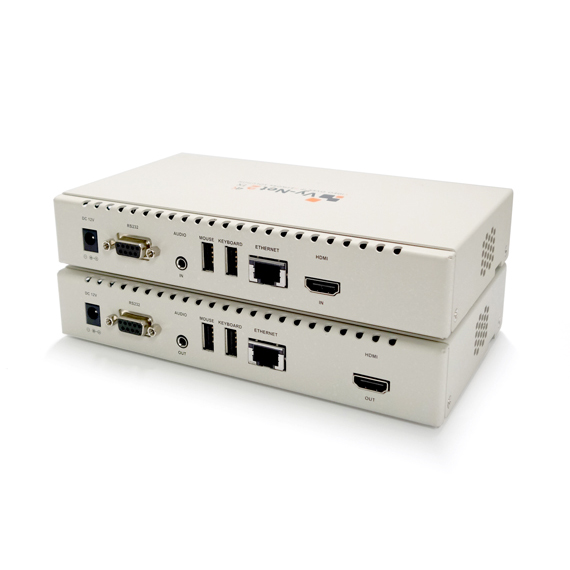

• Using electrical connector
 - Transmitter • Input : HDMI 1.4 / 2.0
                    • Output : 10GbE(Copper)
                    • USB (keyboard / mouse) : USB A Type x 1
                    • Audio : Phone Jack x 1
                    • RS232  : D-sub 9pin x 1
 - Receiver : • Input : 10GbE(Copper)
                 • Output : HDMI 1.4 / 2.0
                 • USB (keyboard / mouse) : USB A Type x 1
                 • Audio : Phone Jack x 1
                 • RS232  : D-sub 9pin x 1
• Dimension : 195(W) x 110(D) x 35(H)mm
• Maximum Supporting Resolution : 3840x2160@60Hz
• External Power : 12V / 2.5A (2.5ø DC JACK)
• Power Consumption (transmitter) : 16.7W (Typ)
• Power Consumption (receiver) : 17.3W (Typ)
• Operating Temperature Range : 0°C ~ 40°C



TBD...



Package

• VyNET2
• 2 Power Adapter
• 2 Power Cord
• User's manual
