SDI↔HDMI
SHC
Product description

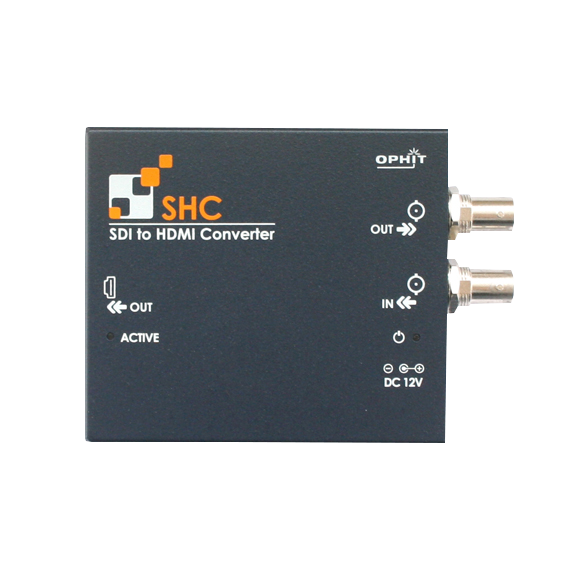

SDI to HDMI 컨버터
OPHIT's SHC is perfect solution for converting SDI singnal to HDMI signal. It enables SDI compliant device to be connected to display with HDMI port.


Features

• Converts SDI signal to HDMI signal
• Input : 1 x SDI / Output : 1 x SDI, 1 x HDMI
• Compliant with HDMI v1.3, HDCP v1.1 and DVI v1.1 standards
• Serial digital video transmitter for HD video :
- SD 480i @ 60Hz
- HD 720p @ 50, 60Hz
- HD 1080i @ 50, 60Hz
- HD 1080p @ 24, 25, 30, 50 and 60Hz
• Support one SDI output for cascade
• LED indicator for power and signal detection monitoring
• Input port
  - SDI signal   SMPTE 259M-C (270Mbps)
                     SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
                     SMPTE 424M (2.970, 2.970 / 1.001Gbps)
 • Output port
  - HDMI signal (480i, 720p, 1080i, 1080p)
  - SDI signal   SMPTE 259M-C (270Mbps)
                     SMPTE 292M (1.485, 1.485 / 1.001 Gbps)
                     SMPTE 424M (2.970, 2.970 / 1.001Gbps)

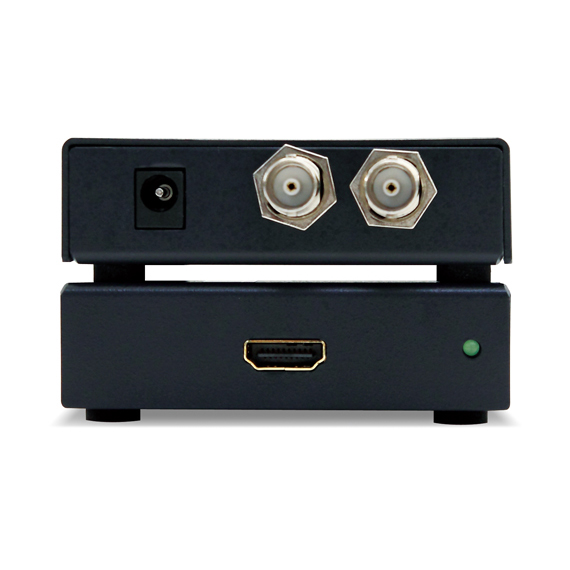

• Connector
  - Input : 75Ω BNC (female)
  - Output : HDMI A type (female) / 75Ω BNC (female)
  - Power : DC-Jack 2.1pie
• General
  - Dimension : 100W x 85D x 25H (mm)
  - Weight : 250g
  - Power : 100 ~ 240V with DC 12V, 1A
  - Power Comsumption : 2.4W (max)




Package
• SHC
• Power Adapter
• User’s manual

Ordering Information
• SHC
