DVI／HDMI↔VGA

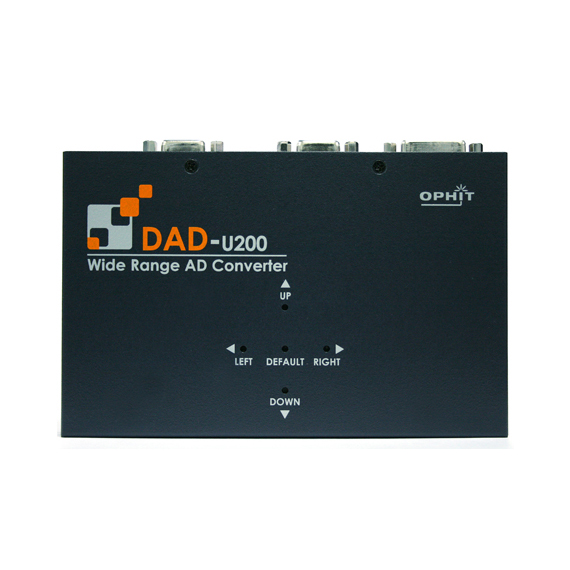

DAD-U200
Product description
VGA to DVI 컨버터
Download
Analog to digital converter DAD-U200 converts your VGA analog signal to DVI digital signal so that display devices without VGA port can be connected to your PC with VGA port easily and conveniently. 5 preset resolutions are changeable by control key.
• Converts VGA analog video signal to DVI digital video signal
• Input : D-Sub x 1
• Output : DVI x 1, D-Sub x 1
• Supporting Resolution: up to WUXGA(1920 x 1200), 1080P

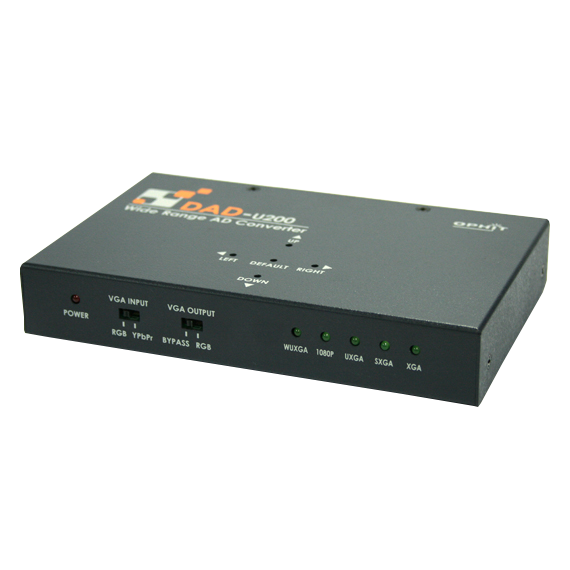

• Support selectable RGB and YPbPr input/output signal by front switch
• User changeable resolution: WUXGA, 1080p, UXGA, SXGA, XGA
• EMC& Safety: CE, FCC
• Converts VGA analog video signal to DVI digital video signal
• Input : D-Sub x 1
• Output : DVI x 1, D-Sub x 1
• Supporting Resolution: up to WUXGA(1920 x 1200), 1080P
• Support selectable RGB and YPbPr input/output signal by front switch
• User changeable resolution: WUXGA, 1080p, UXGA, SXGA, XGA
• EMC& Safety: CE, FCC

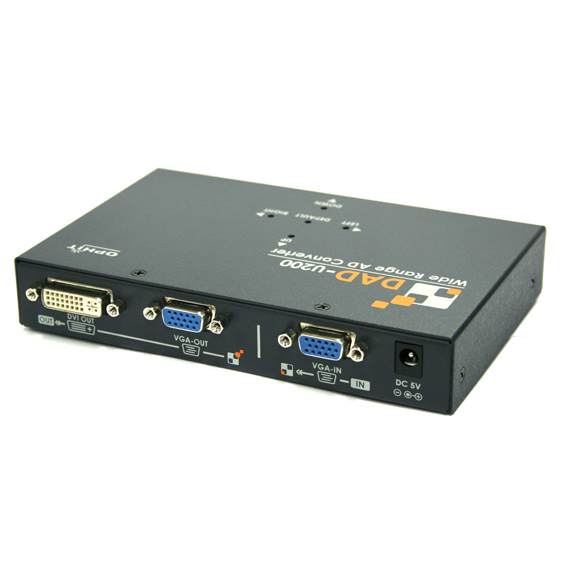

• Connector
- Input : D-sub 15pin (female)
- Output : 1 x D-sub 15pin (female), 1 x DVI-I (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution :
- WUXGA (1920 x 1200) @ 60Hz
- 1080p (1920 x 1080) @ 60Hz
• Power Consumption : 3.5W (max)
• Power Supply : 100 ~ 240V with DC 5V, 2A
• Dimension : 160W x 110D x 25H (mm) / Weight 500g
• Operating Temperature range: 0°C ~ 50°C
• Storage Temperature range: -20°C ~ 70°C
- Input : D-sub 15pin (female)
- Output : 1 x D-sub 15pin (female), 1 x DVI-I (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution :
- WUXGA (1920 x 1200) @ 60Hz
- 1080p (1920 x 1080) @ 60Hz
• Power Consumption : 3.5W (max)
• Power Supply : 100 ~ 240V with DC 5V, 2A
• Dimension : 160W x 110D x 25H (mm) / Weight 500g
• Operating Temperature range: 0°C ~ 50°C
• Storage Temperature range: -20°C ~ 70°C
Package
• DAD-U200
• Power Adapter
• User’s manual
Ordering Information
• DAD-U100
• DAD-U200
• Power Adapter
• User’s manual
Ordering Information
• DAD-U100
