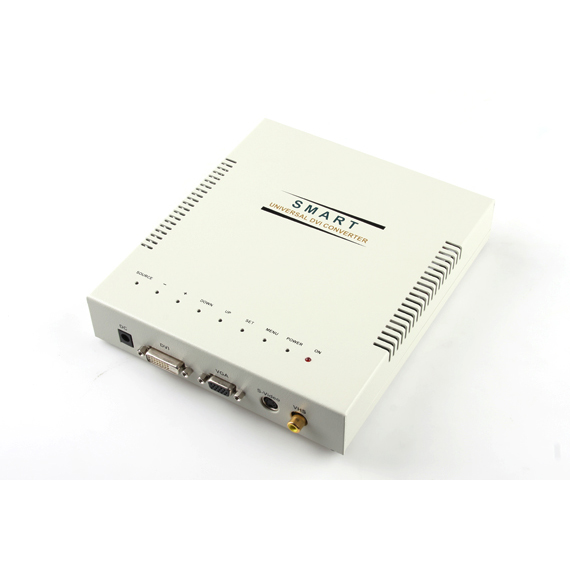

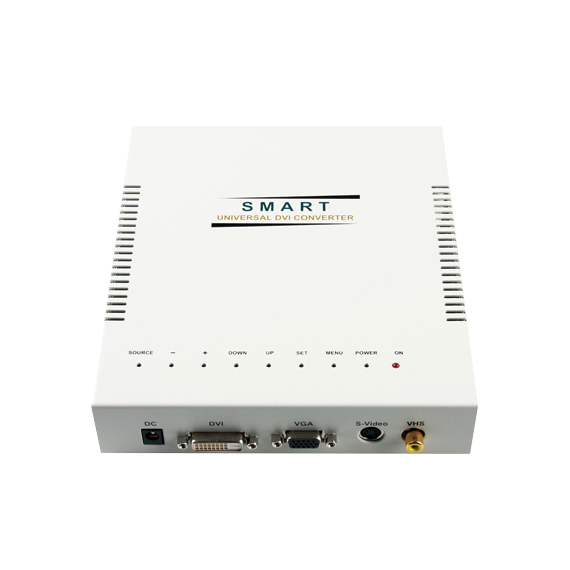

OPHIT’s Universal DVI Converter (DAU Series) changes DVI, VGA, S-Video, Video image signal to DVI signal. It enables PC and notebook without DVI output to be connected easily with digital display devices such as LCD, PDP and Projector.
Features
• Input : VGA x 1, DVI x 1, S-Video x 1, S-Video x 1 / Output : DVI x 1
• DVI v1.0 Compliant
• OSD control for various input signals
• Supports reolution up to WUXGA and 1080P
• EMC & Safety : CE, FCC
Features
• Input : VGA x 1, DVI x 1, S-Video x 1, S-Video x 1 / Output : DVI x 1
• DVI v1.0 Compliant
• OSD control for various input signals
• Supports reolution up to WUXGA and 1080P
• EMC & Safety : CE, FCC
• Connector :
- Input : DVI-D (female), 15pin D-Sub (female), 75Ω BNC (female), RCA (female)
- Output : DVI-I (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution & Distance :
- WUXGA (1920 x 1200) @ 60Hz
- 1080p (1920 x 1080) @ 60Hz
• Power Consumtion : 9W (max)
• Power Supply : 100~240V DC 12V, 5A
• Dimensions : 200W x 175D x 35H (mm) / 1,400g
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
- Input : DVI-D (female), 15pin D-Sub (female), 75Ω BNC (female), RCA (female)
- Output : DVI-I (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution & Distance :
- WUXGA (1920 x 1200) @ 60Hz
- 1080p (1920 x 1080) @ 60Hz
• Power Consumtion : 9W (max)
• Power Supply : 100~240V DC 12V, 5A
• Dimensions : 200W x 175D x 35H (mm) / 1,400g
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C
Package
• DAU
• 1 Power Adapter
• User’s manual
Ordering Information
• DAU
• DAU
• 1 Power Adapter
• User’s manual
Ordering Information
• DAU
