Digital/Analog→Fiber

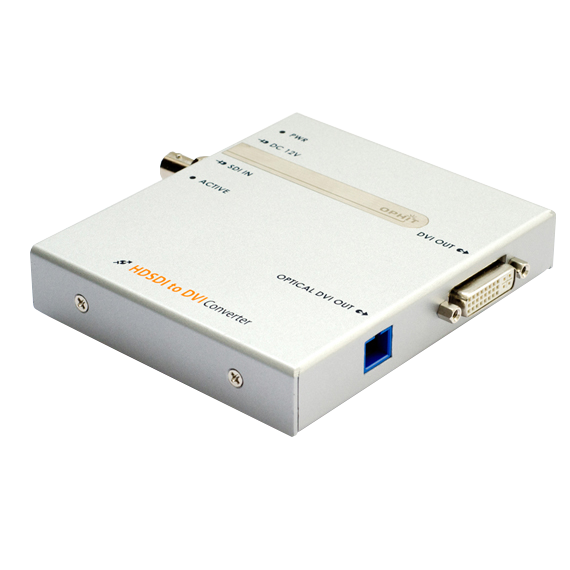

CVBXB-SDI
Product description
SDI to DVI copper 광컨버터 박스타입
Features

• Converts SDI signal to optical signal for transmitting high resolution of video signal to a remote location
• Transmits video signal up to 500M by 1ch multimode fiber
• Works cooperatively with DSL receiver model
• Dual color LED power indicator provides power an signal presence indication
• An ideal solution for clean, professional cable organization and termination
• Input
  - Format : SD / HD / 3G - SDI
  - Suppoting Resolution : SMPTE 292M (1.485, 1.485 / 1.001Gbps)
                                    SMPTE 259M-C (270Mbps)
                                    SMPTE 424M (2.95Gbps)
  - Connector : 1 x BNC
• Output
  - Format : DVI (single link)
  - Supporting Resolution : 1080P @ 60Hz
  - Optical Fiber : 1 x SC

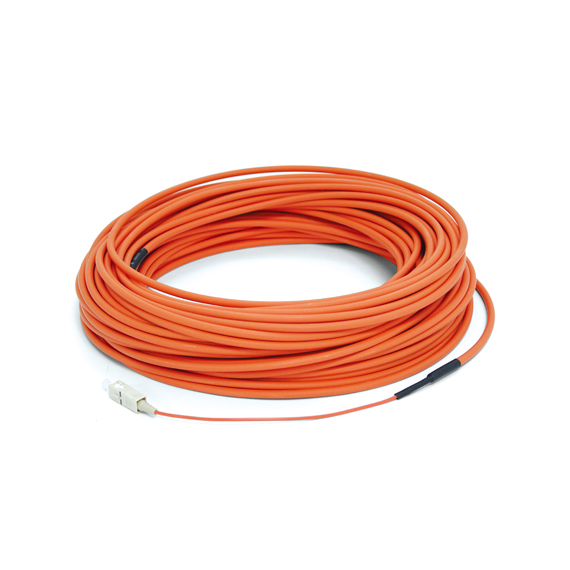

  - Using Fiber Type : Multi-mode 50/125 or 62.5/125µm optic fiber
  - Transmission Distance : Max 1,650ft (500meters)
• General
  - Dimension : 115W x 70D x 90H (mm)
  - Power Consumption : 2.6W
  - Power Supply : 100 ~ 240V with DC 12V, 1.5A
  - Enclosure Type : AL, Silver




Package
• CVBXB-SDI
• Power Adapter
• User’s manual

Ordering Information
• CVBXB-SDI
