Digital／Analog→Fiber

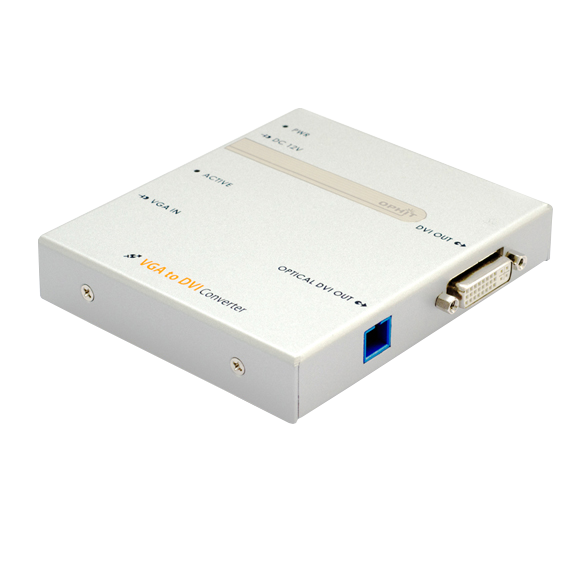

CVBXB-VGA
Product description
VGA to DVI copper 광컨버터 박스타입
Download
Features
• Converts VGA signal to optical signal for transmitting high resolution of video signal to a remote location
• Transmits video signal up to 500M by 1ch multimode fiber
• Works cooperatively with DSL receiver model
• Dual color LED power indicator provides power an signal presence indication
• An ideal solution for clean, professional cable organization and termination
• Converts VGA signal to optical signal for transmitting high resolution of video signal to a remote location
• Transmits video signal up to 500M by 1ch multimode fiber
• Works cooperatively with DSL receiver model
• Dual color LED power indicator provides power an signal presence indication
• An ideal solution for clean, professional cable organization and termination
• Input
- Format : VGA
- Suppoting Resolution : 1920 x 1200 / 1080P @ 60Hz
- Connector : 1 x D-sub 15pin
• Output
- Format : DVI (single link)
- Supporting Resolution : 1920 x 1200 / 1080P @ 60Hz
- Optical Fiber : 1 x SC
- Using Fiber Type : Multi-mode 50/125 or 62.5/125µm optic fiber
- Transmission Distance : Max 1,650ft (500meters)
• General
- Dimension : 115W x 70D x 90H (mm)
- Power Consumption : 2.8W
- Power Supply : 100 ~ 240V with DC 12V, 1.5A
- Enclosure Type : AL, Silver
- Format : VGA
- Suppoting Resolution : 1920 x 1200 / 1080P @ 60Hz
- Connector : 1 x D-sub 15pin
• Output
- Format : DVI (single link)
- Supporting Resolution : 1920 x 1200 / 1080P @ 60Hz
- Optical Fiber : 1 x SC
- Using Fiber Type : Multi-mode 50/125 or 62.5/125µm optic fiber
- Transmission Distance : Max 1,650ft (500meters)
• General
- Dimension : 115W x 70D x 90H (mm)
- Power Consumption : 2.8W
- Power Supply : 100 ~ 240V with DC 12V, 1.5A
- Enclosure Type : AL, Silver
Package
• CVBXB-VGA
• Power Adapter
• User’s manual
Ordering Information
• CVBXB-VGA
• CVBXB-VGA
• Power Adapter
• User’s manual
Ordering Information
• CVBXB-VGA
