OPHD-H104 > 영상신호 분배기

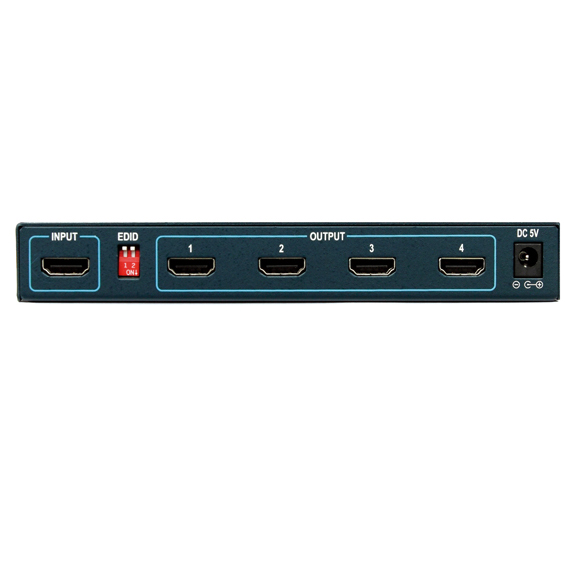

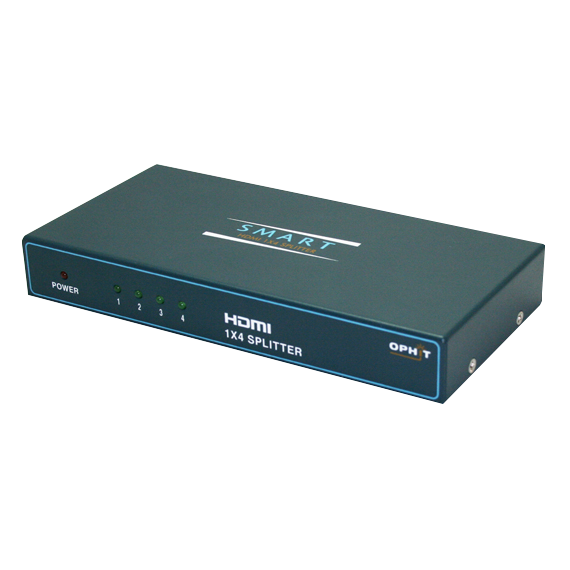

OPHD-H104 Splitter let your one HDMI signal (Computer, DVD player, Play-Station etc.) with HDMI output distributes up to four digital displays such as PC monitors, HDTVs(LCD, PDP) or projectors.



• Connector (input) : HDMI A type (female) x 1
• Connector (output) : HDMI A type (female) x 4
• Pixel Clock : 225MHz (single Link)
• Supporting Resolution :
                     - WUXGA (1920 x 1200) @ 60Hz
                     -  1080p (1920 x 1080) @ 60Hz
• Compliant : HDMI v1.3
• EMC & Safety : CE, FCC
• Dimension : 170W x 85D x 25H (mm)
• Weight : 390g
• Power supply : DC 5V, 2A
• Operating Temperature Range : 0℃ to 50℃
• Storage Temperature Range : -20℃ to 70℃



Package
• OPHD-H104
• 1 x Power Adapter
• User’s manual

Ordering Information
• OPHD-H104
