DMD-H105 > 영상신호 분배기

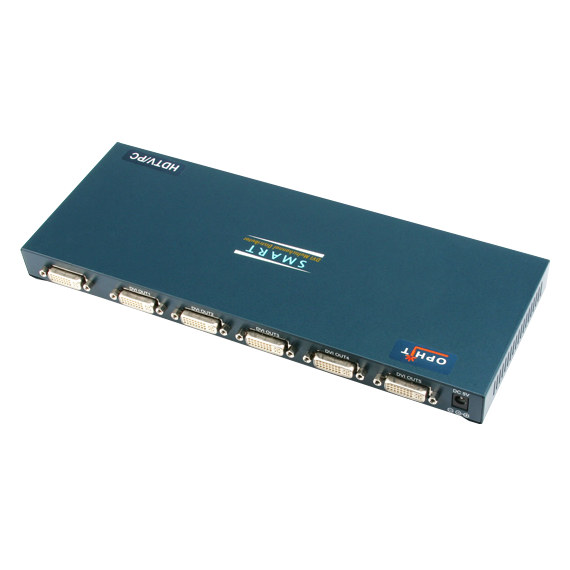

OPHIT’s DVI Splitter(DMD-H105) let your one digital video signal (Set-Top boxes, DVD Players and PC) with DVI
output distributes into five digital displays such as PC monitors, HDTVs (LCD,PDP) or projectors.

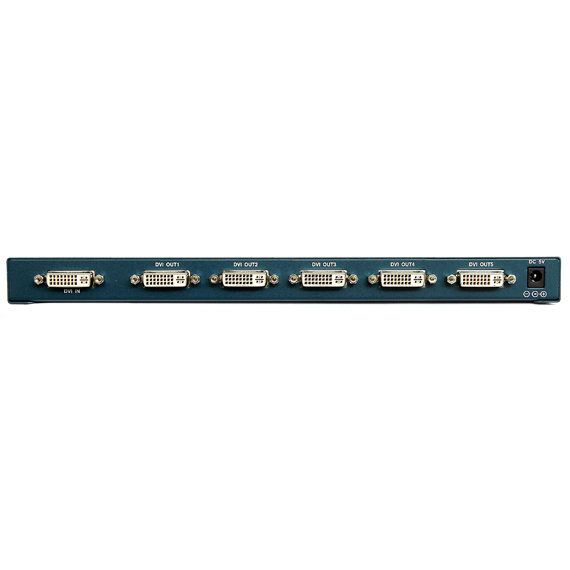

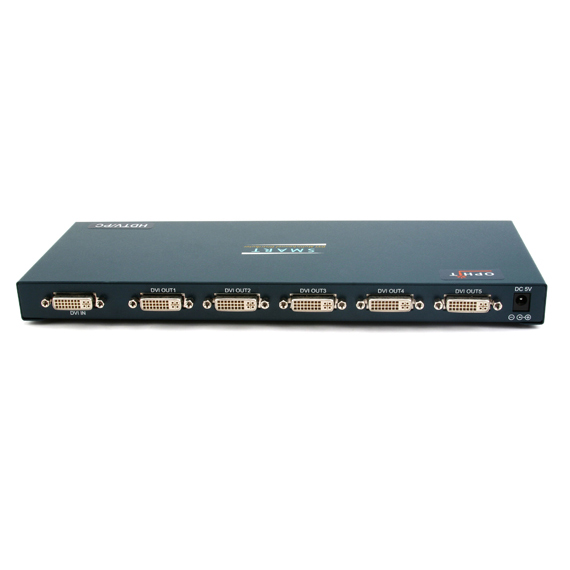

• Connector (input) : DVI-I 29Pin (female) x 1
• Connector (output) : DVI-I 29Pin (female) x 5
• Pixel Clock : 165MHz (single Link)
• Supporting Resolution :
                     - WUXGA (1920 x 1200) @ 60Hz
                     - 1080p (1920x 1080) @ 60Hz
• Power Consumtion : 5W (max)
• Power supply : 100~240V, DC 5V, 2A
• Dimension : 300W x 120D x 25H (mm)
• Weight : 880g
• Operating Temperature Range : 0℃~50℃
• Storage Temperature Range : -20℃~70℃
• EMC & Safety : CE, FCC



Package
• DMD-H105
• 1 Power Adapter
• User's manual

Ordering Information
• DMD-H105
