DVI
DOL
Product description

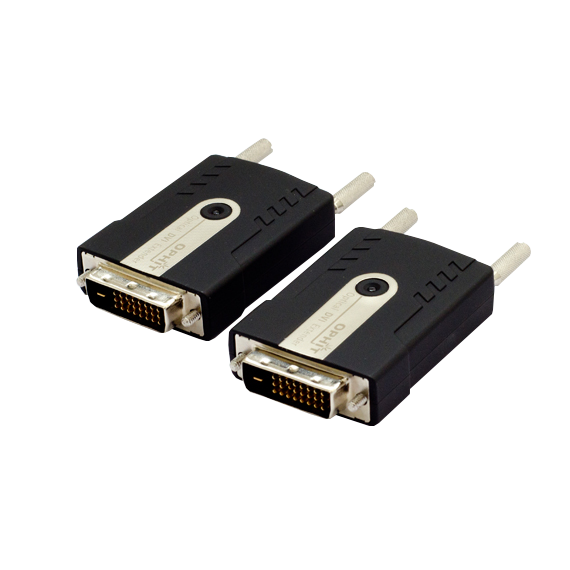

DVI fiber optic 1ch extender
DOL, Optical DVI extension module, is designed to let digital flat panel display extend over 300meters(1,000ft) away from host based on DVI Standard by optical transmission.
It can transmit EDID data and HDCP over fiber in real time. DOL can be used with DVI device as well as HDMI standard device such as Blu-ray player, PS-3 as well as DVI devices.

Features

• High speed and long distance transmission by 1channel LC type multi mode optical fiber
• TMDS video signal and EDID data is transmitted over optical fiber
• Extend up to 300m
• DVI v1.0 Compliant
• HDCP compliant
• Maximum resolution WUXGA or 1080P (12bit Deep Color)
• EMC & Safety : CE, FCC

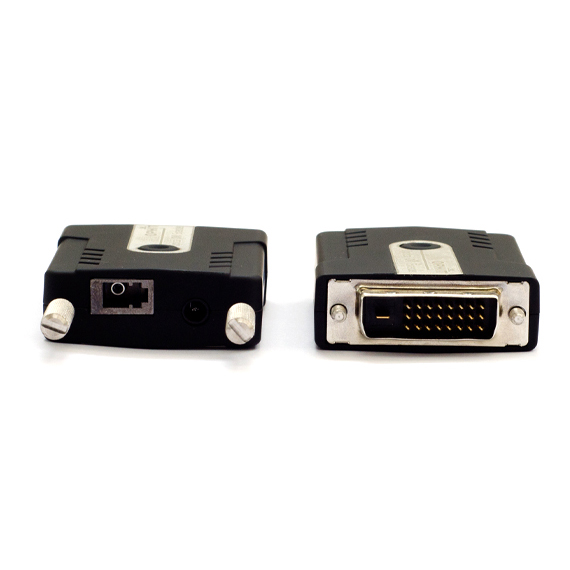

• Connector (transmitter) : DVI-D (male), LC connector (female)
• Connector (receiver) : DVI-D (male), LC connector (female)
• Optic fiber : 1ch / Multi-mode(50/125μm)
• Pixel Clock : 225MHz (single link)
• Supporting Resolution & Distance
   - WUXGA (1920 x 1200) @ 60Hz / 300M (1,000ft)
   - 1080p (1920 x 1080) @ 60Hz / 300M (1,000ft)
• Power Consumption (transmitter) : 2.5W (max)
• Power Consumption (receiver) : 2.0W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 82W x 41D x 15H (mm)
• Operating Temperature range : 0°C ~ 50°C
• Storage Temperature range : -20°C ~ 70°C


Package
• Transmitter, Receiver
• 2 x Power Adapters
• 1 x USB power cable
• User’s manual

Ordering Information
• DOL-M : Transmitter, Receiver and power adapters
• DOL-AXXX : Transmitter, Receiver and power adapters + Multi-mode 1ch(LC connector) optic fiber XXX meters
