HDMI
HDMB
Product description

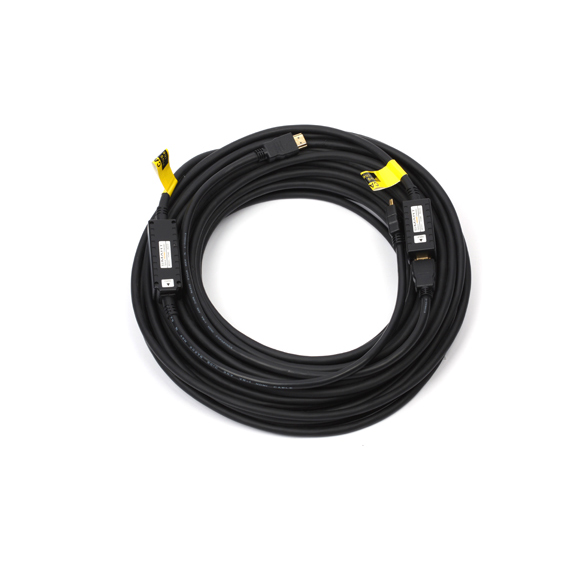

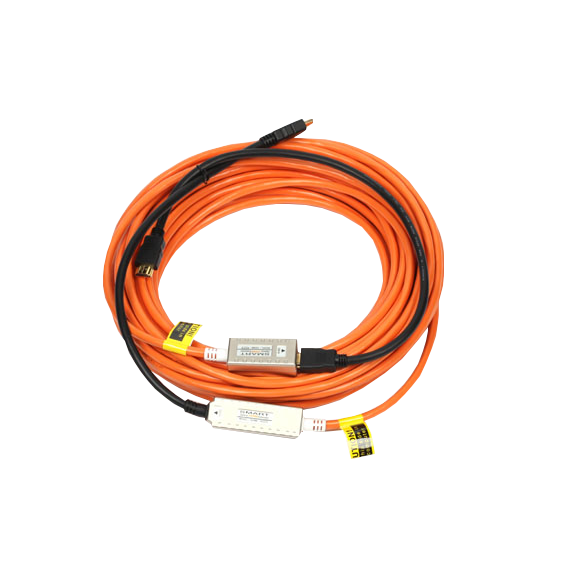

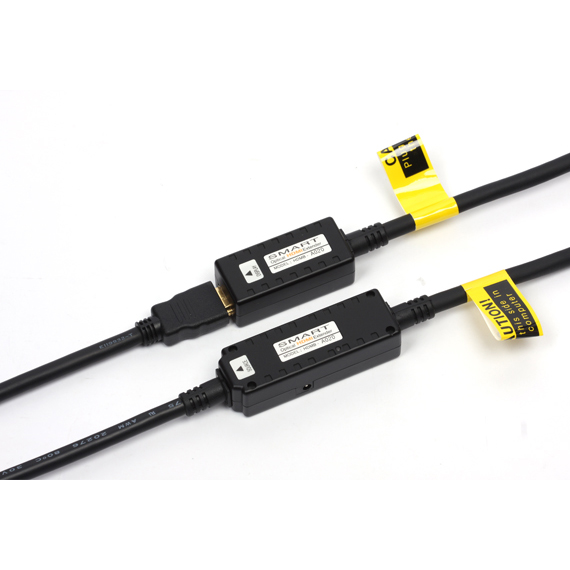

HDMI fiber optic cable
This unique fiber optic cable system let your digital HDTV extend up to 100meters (330feet) away from host based on HDMI standard without signal degradation by 1080p resolution.
Features

• High speed and long distance transmission by optical system
• HDMI standard v1.3 and HDCP compliant
• Supports 12bit Deep color
• Either external or internal power supply is available
(External power supply is optional. Automatic power switch is included)
• DDC and CEC signal and 5V power line are transmitted by copper line
• EMC & Safety : CE, FCC
• Connector (transmitter) : HDMI A type (male)
• Connector (receiver) : HDMI A type (male)
• Optic Fiber : Copper + Optical Hybrid
• Pixel Clock : 225MHz (single link)
• Supporting Resolution & Distance
   - WUXGA (1920 x 1200) @ 60Hz / 100M (330ft)
   - 1080p (1920 x 1080) @ 60Hz / 100M (330ft)
• Power Consumption (transmitter) : 0.8W (max)
• Power Consumption (receiver) : 1.05W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Dimensions :
   -Transmitter : 75W x 25D x 20H (mm)
   -Receiver : 55W x 25D x 20H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C




Package
• HDMB Cable (with 42cm HDMI copper cable)
• 1 Power Adapter (for transmitter)
• User’s manual

Ordering Information
• HDMB-AXXX : HDMB Cable XXX meters and power adapter
