DVI
DQL
Product description

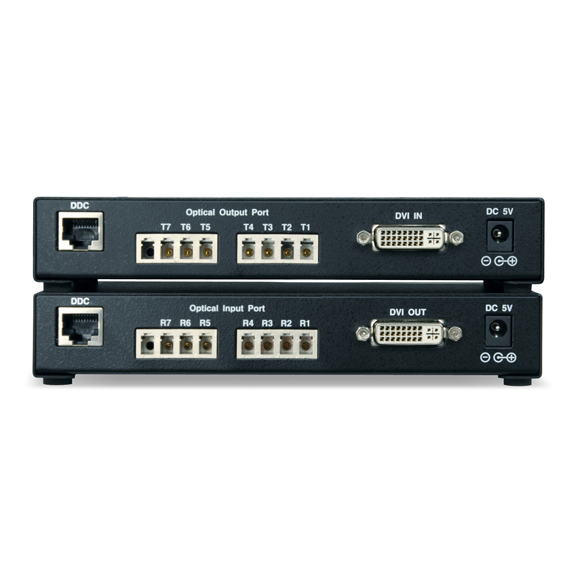

DVI dual link fiber optic 7ch extender
OPHIT’s DQL with fiber optical cable system let your Dual digital flat panel display extend up to 100 meters (330 feet) away from host by TMDS digital signal transmission.

Features

• High speed and long distance transmission by 7 channel LC type multi-mode optical fiber
• Extend up to 100meters (330ft)
• Self EDID detecting function for EDID information.
• Supports Single link and Dual link by selectable function switch
• It can support two mode for DDC
- Real mode : Uses one CAT-5 cable for DDC
- Emulation : Pseudo-DDC detection function for EDID information (no need of CAT-5 Connection)
• EMC & Safety : CE, FCC
• Connector (transmitter) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Connector (receiver) : DVI-I (female), LC connector (female), RJ-45 Jack (female)
• Optic Fiber : 7ch / Multi-mode(50/125μm)
• Video Bandwidth (pixel clock): Single link (max 225MHz) / Dual link
• Supporting Resolution & Distance
    - WQXGA (2560 x 1600) @ 60Hz / 100M (330ft)
• Power Consumption (transmitter) : Single link 1.0W (max) / Dual link 1.4W (max)
• Power Consumption (receiver) : 2.5W (max)
• Power Supply (transmitter) : 100~240V DC 5V, 2A
• Power Supply (receiver) : 100~240V DC 5V, 2A
• Dimensions : 180W x 90D x 30H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C


Package
• Transmitter, Receiver
• 2 Power Adapters
• User’s manual


Ordering Information
• DQL-M : Transmitter, Receiver and power adapters
• DQL-AXXX : Transmitter, Receiver and power adapters + Multi-mode 7ch(LC connector) optic fiber XXX meters
