DVI
DDI
Product description

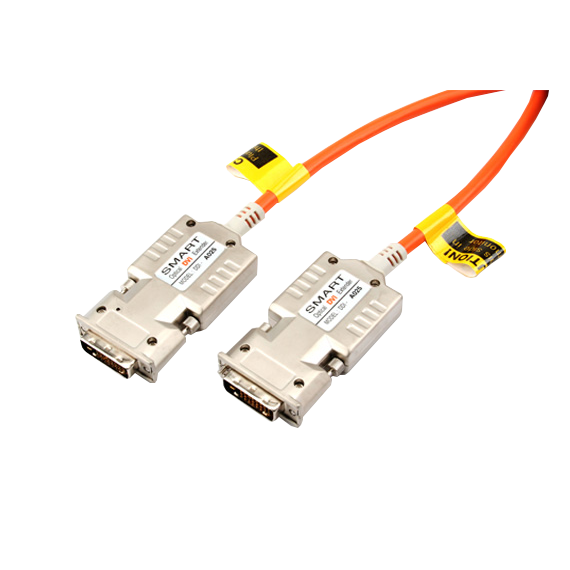

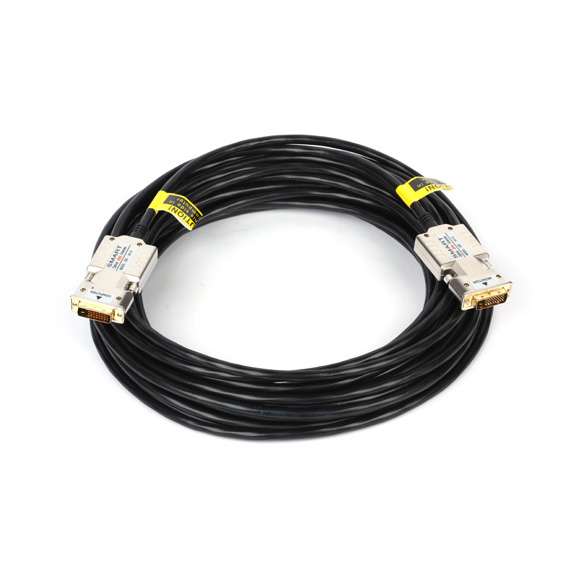

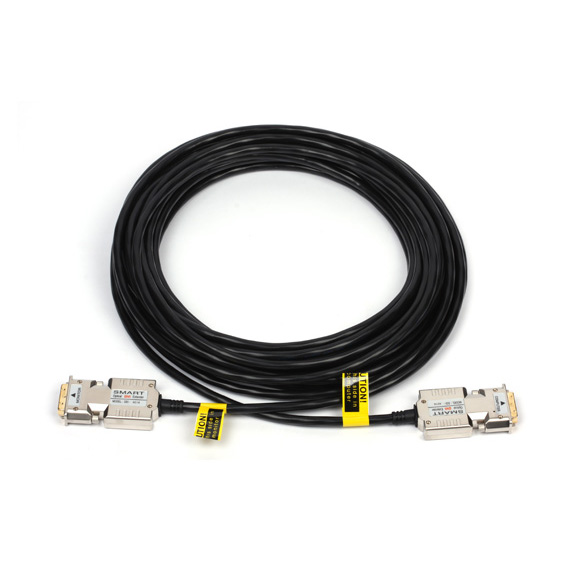

DVI fiber optic cable
This unique fiber optical cable system let your digital display extend up to 100 meters (330 feet) away from host without any external power supply based on DVI standard.

Features

• High Speed and long distance transmission by optical system
• DVI v1.0 Compliant
• Either external or internal power supply is possible.
(External power supply is optional. Automatic power switch is inclued)
• DDC signal and 5V power line are transmitted by copper line
• EMC & Safety : CE, FCC
• Connector (transmitter) : DVI-D (male)
• Connector (receiver ): DVI-D (male)
• Optic Fiber : Copper + Optical Hybrid
• Pixel Clock : 165MHz (single link)
• Supporting Resolution & Distance
    - WUXGA(1920 x 1200) @ 60Hz / 100M (330ft)
• Power Consumption (transmitter) : 0.85W (max)
• Power Consumption (receiver) : 0.85W (max)
• Power Supply (optional) : 100~240V DC 5V, 2A
• Dimensions : Connector 40W x 71D x 15H (mm)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C


Package
• DDI Cable
• User’s manual

Ordering Information
• DDI-AXXX : DDI Cable XXX meters
