DVI/HDMI↔VGA
HDA
Product description

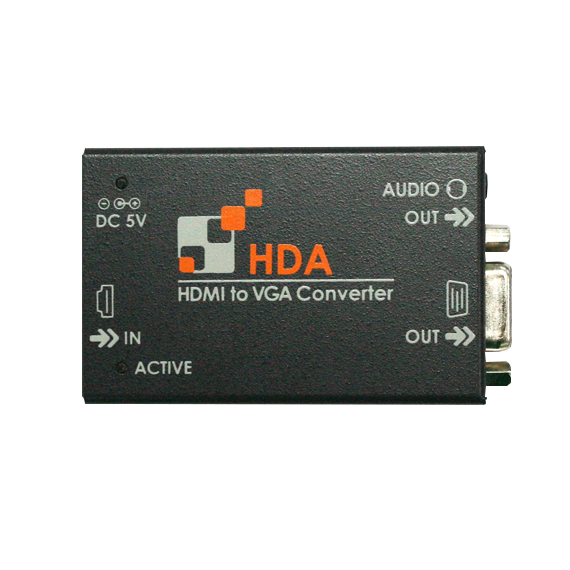

HDMI to VGA converter
HDA converts HDMI signal to VGA analog graphic signal and audio signal so that display devices without HDMI input can be connected to your PC and Labtop with HDMI output easily and conveniently.

Feature

• Converts HDMI signal to analog VGA and audio signal
• HDMI v1.2a and HDCP compliant
• Compact size

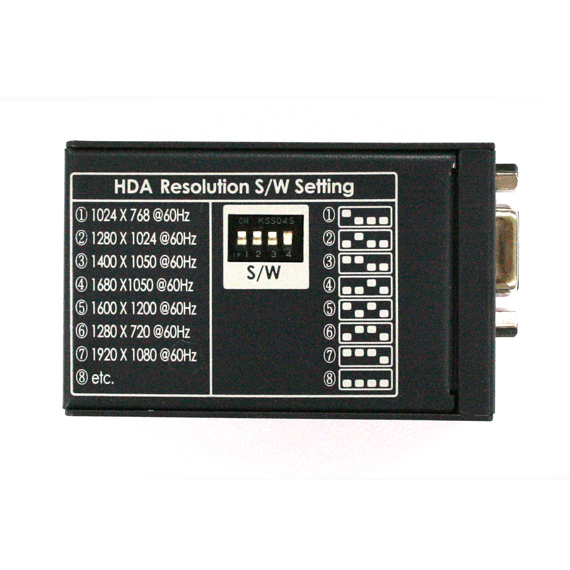

• Easy resolution setting throu dip switch
• Connector
             - Input : HDMI A type (female)
             - Output : D-sub 15pin (female), Mini audio jack (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution :
                     - WUXGA (1920 x 1200) @ 60Hz
                     - 1080p (1920 x 1080) @ 60Hz
• Audio : Stereo / Mono
• Power Consumption : 2.97W (max)
• Power Supply : 100 ~ 240V with DC 5V, 2A
• Dimension : 77W x 46D x 21H (mm) / Weight 85g
• Operating Temperature range: 0°C ~ 50°C
• Storage Temperature range: -20°C ~ 70°C




Package
• HDA
• Power Adapter
• User’s manual

Ordering Information
• HDA
