DVI/HDMI↔VGA
DDAX
Product description

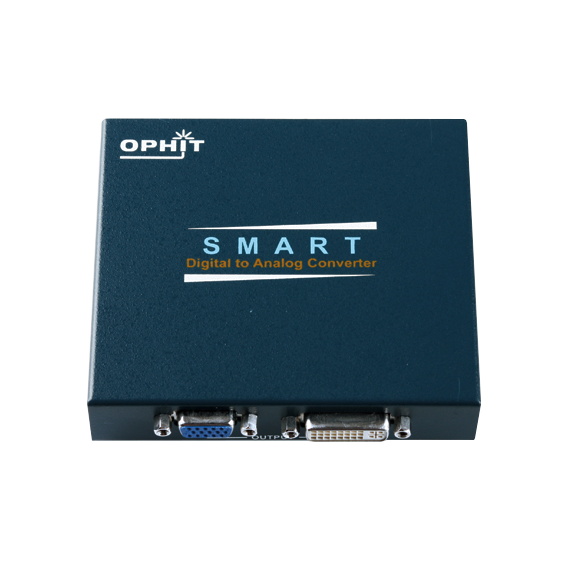

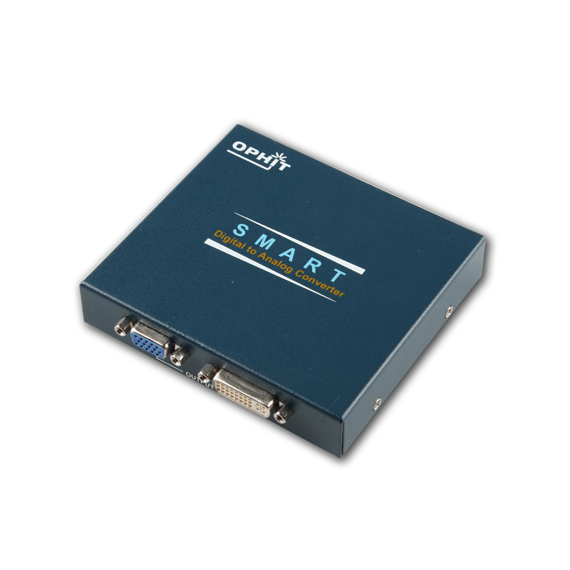

DVI to VGA converter_Box type
DDAX, This DVI to VGA converter transports your DVI signal to analog graphic signal so that analog display devices without DVI output can be connected to your PC and Labtop with DVI output easily and conveniently. It can also distribute same DVI signal to the analog(VGA) and DVI at the same time.

Feature

• Converts DVI signal to analog VGA signal
• DVI v1.0 compliant
• Input Connector : 1 x DVI

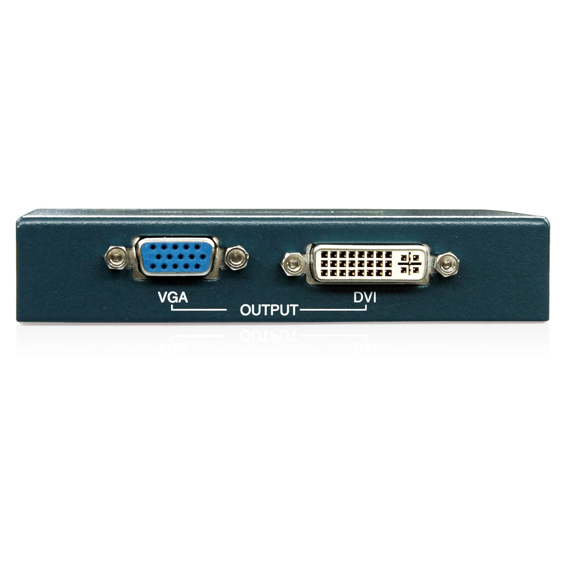

• Output Connector : 1 x VGA and 1 x DVI
• EMC & Safety : CE



• Connector
             - Input : DVI-I (female)
             - Output : D-sub 15pin (female), DVI-I (female)
• Pixel Clock : 225MHz (single link)
• Supporting Resolution :
                     - WUXGA (1920 x 1200) @ 60Hz
                     - 1080p (1920 x 1080) @ 60Hz
• Power Consumption : 3.5W (max)
• Power Supply : 100 ~ 240V with DC 5V, 2A
• Dimension : 110W x 100D x 25H (mm) / Weight 320g
• Operating Temperature range: 0°C ~ 50°C
• Storage Temperature range: -20°C ~ 70°C




Package
• DDAX
• Power Adapter
• User’s manual

Ordering Information
• DDAX
