DDAP > Converters

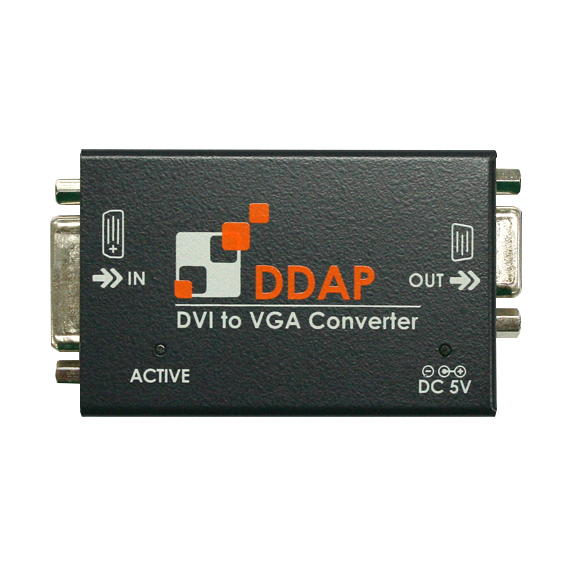

DDAP converters DVI signal to analog graphic signal so that display devices without DVI input can be connected to your PC and Labtop with DVI output easily and conveniently.

Feature

• Converts DVI signal to analog VGA signal
• DVI v1.0 compliant
• Compact size

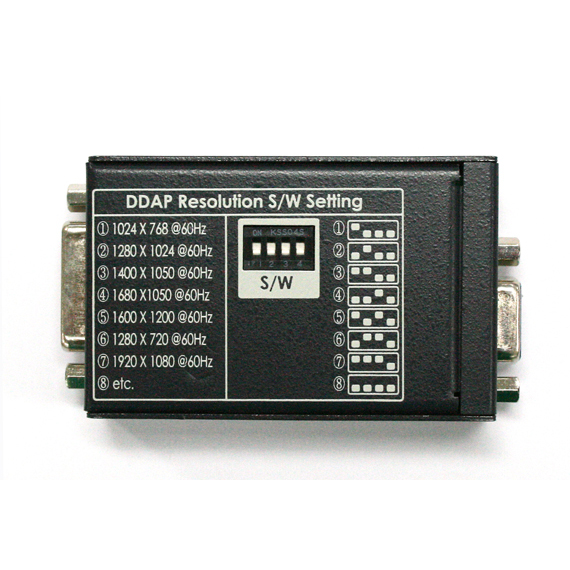

• Easy resolution setting throu dip switch



• Connector
             - Input : DVI-I (female)
             - Output : D-sub 15pin (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution :
                     - WUXGA (1920 x 1200) @ 60Hz
                     - 1080p (1920 x 1080) @ 60Hz
• Power Consumption : 1.98W (max)
• Power Supply : 100 ~ 240V with DC 5V, 2A
• Dimension : 77W x 46D x 21H (mm) / Weight 85g
• Operating Temperature range: 0°C ~ 50°C
• Storage Temperature range: -20°C ~ 70°C



Package
• DDAP
• Power Adapter
• User’s manual

Ordering Information
• DDAP
