DVI/HDMI↔VGA

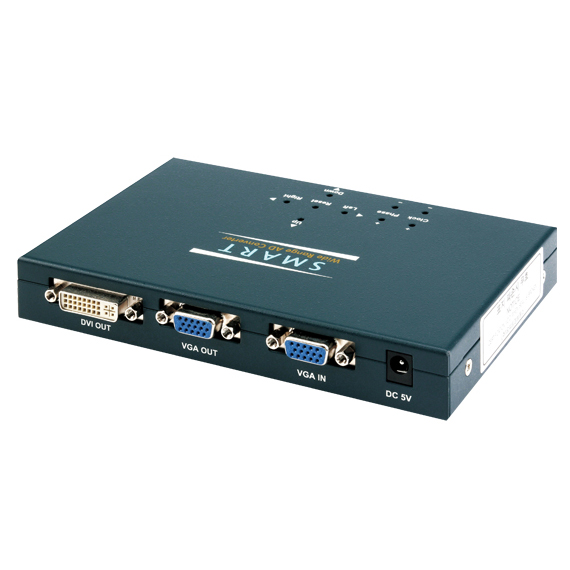

DAD-U100
Product description
VGA to DVI converter
OPHIT's DVI converter (DAD series) transports analog graphic singnal of your PC to DVI signal so that your PC without DVI output can be connected to digital display devices such as LCD monitor and projector with DVI input easily and conveniently.

Feature

• Converts VGA signal to DVI signal
• Input : 1 x VGA / Output : 1 x DVI, 1 x VGA
• DVI v1.0 compliant

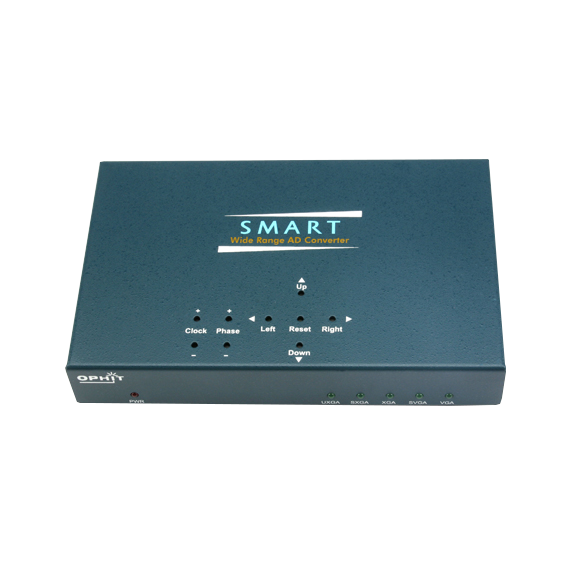

• Manual screen control key for corresponding to versatile resolution
• Supports up to WUXGA (1920 x 1200) resolution
• EMC & Safety : CE, FCC

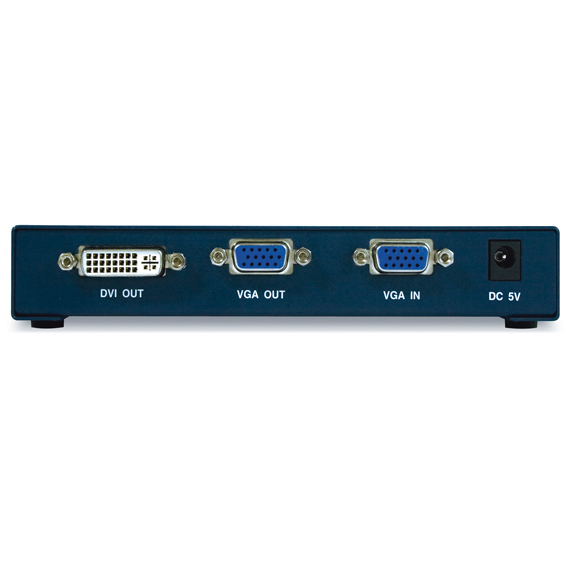

• Connector
             - Input : D-sub 15pin (female)
             - Output : 1 x D-sub 15pin (female), 1 x DVI-I (female)
• Pixel Clock : 165MHz (single link)
• Supporting Resolution :
                     - WUXGA (1920 x 1200) @ 60Hz
                     - 1080p (1920 x 1080) @ 60Hz
• Power Consumption : 2.3W (max)
• Power Supply : 100 ~ 240V with DC 5V, 2A
• Dimension : 160W x 110D x 25H (mm) / Weight 500g
• Operating Temperature range: 0°C ~ 50°C
• Storage Temperature range: -20°C ~ 70°C




Package
• DAD-U100
• Power Adapter
• User’s manual

Ordering Information
• DAD-U100
