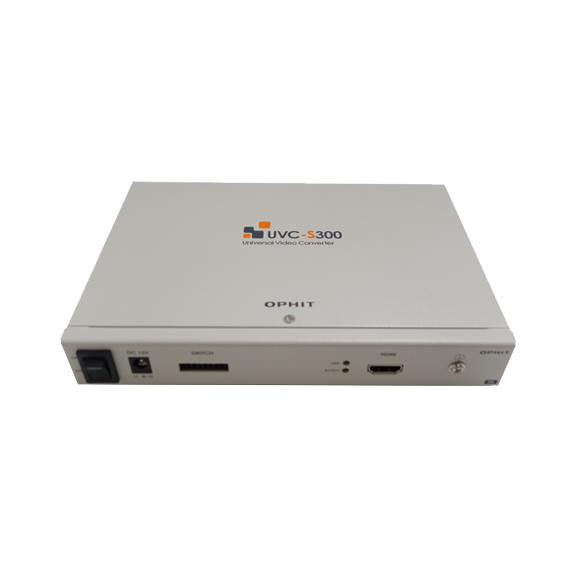

UVC-S300 > Converters

This Universal Video Converter (Model: UVC-S300) is powerful Multi-Format Video input/output Converter which is able to convert Digital to Analog. This unit has digital HDMI port as input formats and Composite (RCA & BNC) / S-Video / D-SUB / DVI as output formats. The input video signal (HDMI) is converted 5(five) output formats as analog Composite (RCA and BNC) / S-Video / D-SUB and 1(one) digital DVI output. The unit has a unique function as cropping which is available in the S-Video /composite output formats. The unit is designed with a stringent safety requirements such as the medical environment and other similarly restriction location.


Features

• Convert Digital to Analog video signal
• Input format : HDMI
• 5 Output formats : D-Sub, DVI, S-Video, Composite (RCA and BNC)
• 5 Simultaneous Outputs.
- Output of DVI / D-SUB outputs to the same size screen when HDMI Inputs (NO Crop)
• Output of S-video / Composite outputs to down scaling when HDMI
- Input available for 7types of cropping in S-VIDEO /Composite output using by Dip Switch.
• Output of S-video / Composite outputs to down scaling when HDMI
- Inputs available for any cropping position in S-VIDEO /Composite
- output using by communication commands from system’s I2C signal line.
• NTSC/PAL Output is selectable by Dip Switch (S-video / Composite)
• Available for RCA and BNC port output simultaneously as composite output.
• DVI 1.0 Compliant
• EMC & Safety : CE, UL, FCC

• Connector :

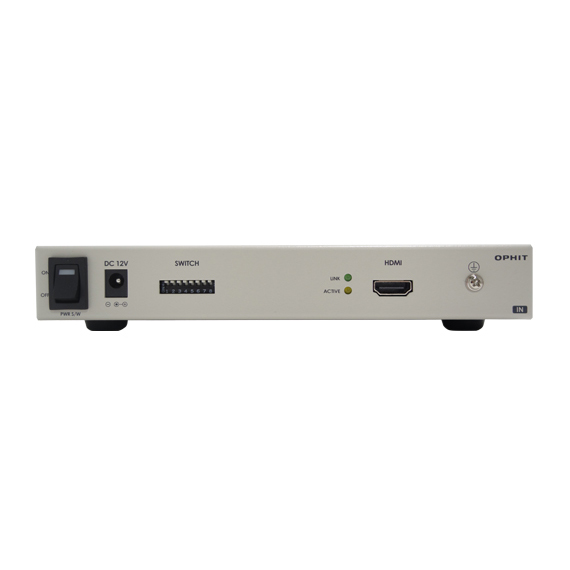

             - Input : HDMI(female) x 1

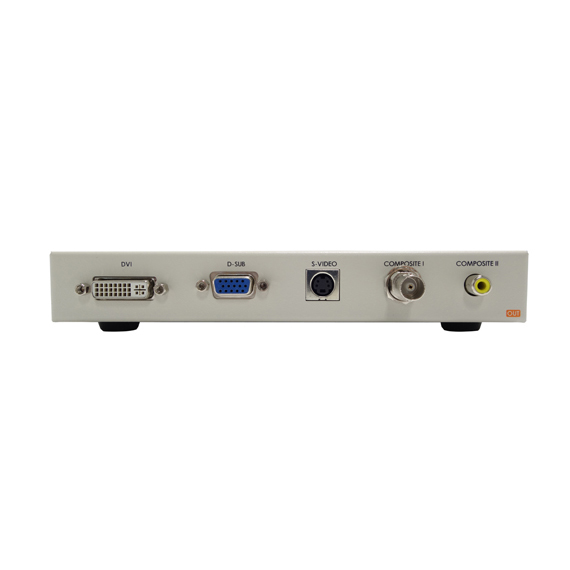

             - Output : DVI 24Pin(female) x 1, D-sub(female) x 1
　　                      S-video(female) x 1, Composite(BNC x 1, RCA x 1)
• Supporting Resolution
　- Input : 1024x768@50/60Hz
　　　　　1280x1024@50/60Hz
　　　　　1920x1080@50/60Hz
　- Output : DVI : 1024x768@50/60Hz, 1280x1024@50/60Hz, 1920x1080@50/60Hz     (Convert and Bypass)
　　　　 　 D-Sub: 1024x768@50/60Hz, 1280x1024@50/60Hz, 1920x1080@50/60Hz     (Convert and Bypass)
　　　 　　 S-video : NTSC-M or PAL-BGHI (Crop Image)
• Power Consumtion : 9W (Max)
• Power Supply : 100-240 V 50-60Hz, DC 12V, 2.5A
• Dimensions : 200mm(W) x 137mm(D) x 30mm(H), Tolerance: ± 0.1mm
• Operating Temperature Range : 0°C ~ 45°C
• Storage Temperature Range : -10°C ~ 70°C



Package
• UVC-S300
• HDMI to HDMI cable (Length : 1.0 m)
• User’s manual

Ordering Information
• UVC-S300
