HDMI
OPHD-H102
Product description

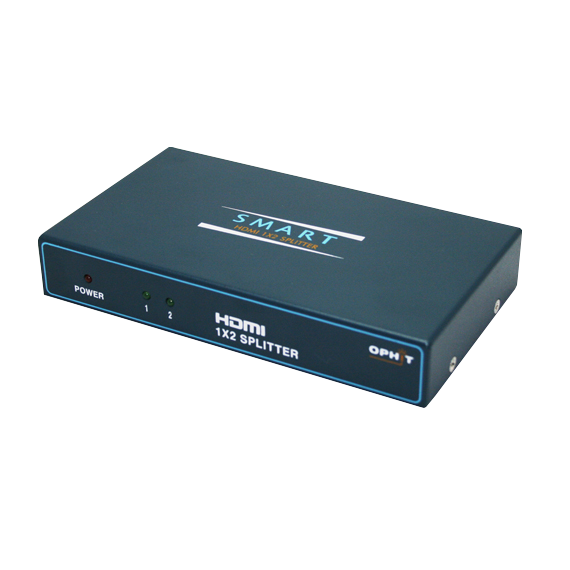

HDMI 1x2 splitter
OPHD-H102 Splitter let your one HDMI signal (Computer, DVD player, Play-Station etc.) with HDMI output distributes up to two digital displays such as PC monitors, HDTVs (LCD, PDP) or projectors.

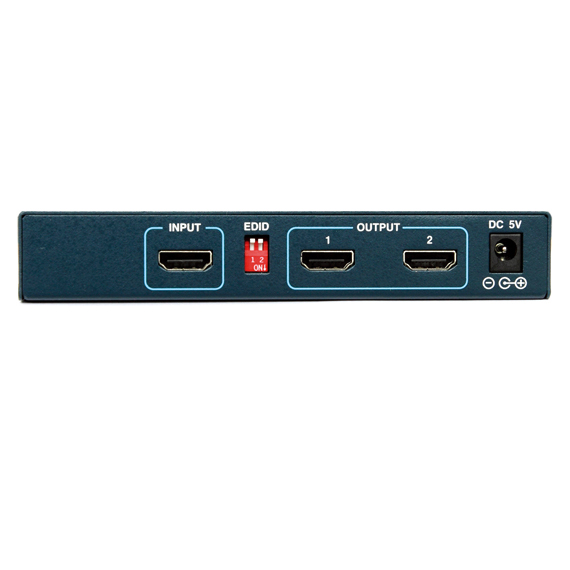

• Connector (input) : HDMI A type (female) x 1
• Connector (Output) : HDMI A type (female) x 2
• Pixel Clock : 225MHz (single Link)
• Supporting Resolution :
                     -  WUXGA (1920 x 1200) @ 60Hz
                     - 1080p (1920 x 1080) @ 60Hz
• Compliant : HDMI v1.3
• EMC & Safety : CE, FCC
• Dimension : 150W x 85D x 25H (mm)
• Weight : 330g
• Power supply : DC 5V, 2A
• Operating Temperature Range : 0℃ to 50℃
• Storage Temperature Range : -20℃ to 70℃




Package
• OPHD-H102
• 1 Power Adapter
• User’s manual

Ordering Information
• OPHD-H102
