Plenum
OFNP
Product description
Optical fiber nonconductive plenum
Download
Plenum Rated Optical Fiber Cables
OFNP (Optical fiber, nonconductive, Plenum)

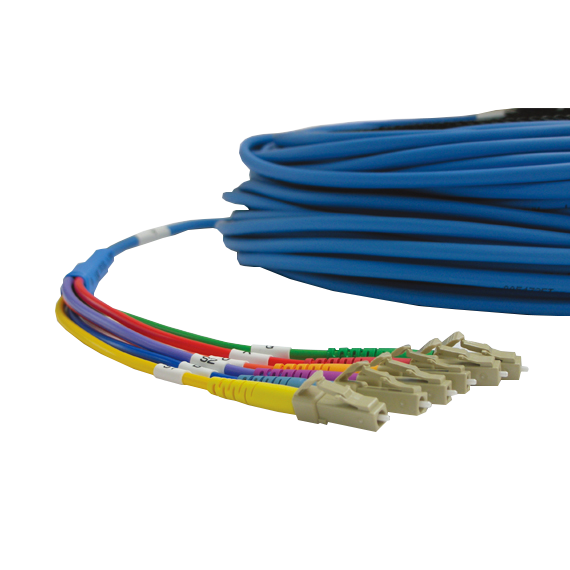

• LC-6ch-LC-Plenum (Outdoor Type)
  Fiber Type : Multi-mode Glass fiber 50/125um, OPNP Rated
  Channel Break Out : 6Ch
  Connector Type : LC
  Outer jacket Diameter : 7.5mm (Outdoor type)
  Length : 10M ~ 1000M
  Color : Blue
  For OPHIT products : DDL


• LC/SC-1ch-LC/SC-Plenum (Indoor Type)
  Fiber Type : Multi-mode Glass fiber 50/125um, OPNP Rated
  Channel : 1Ch
  Connector Type : LC/SC
  Outer jacket Diameter : 2.9mm
  Length : 10M ~ 1000M
  Color : Blue
  For OPHIT products : DSL, DSP, HSP, DSFP, DOL


• LC/SC-2ch-LC/SC-Plenum (Double Jacket)
  Fiber Type : Multi-mode Glass fiber 50/125um, OPNP Rated
  Channel : 2Ch
  Connector Type : LC/SC
  Outer jacket Diameter : 3.5mm
  Length : 10M ~ 1000M
  Color : Blue
  For OPHIT products : DQSP
